好了进入主题:

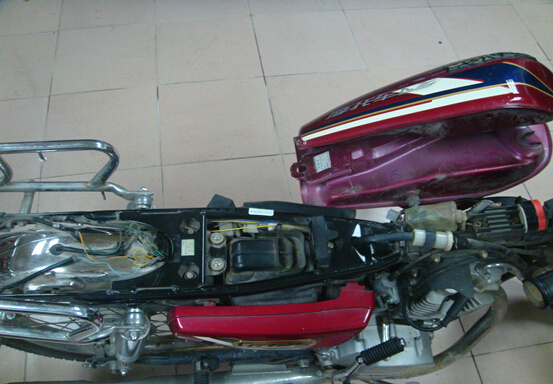

第一步:如图所示,打开摩托车坐垫和油箱。
Step 1: As the picture shown, open the motorcycle seat and fuel tank.

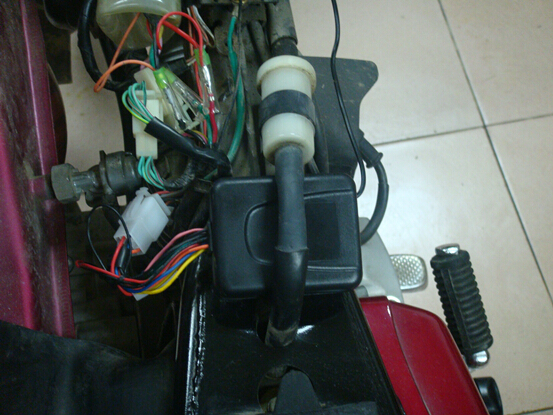

第二步:安装方向灯两条黄色线,如图所示,将两条黄色线分别连接好。
Step 2: The two yellow lines of the direction lights, as the picture, connect the two yellow lines individually.

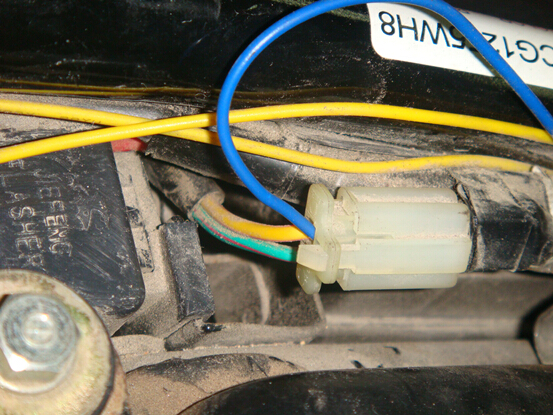

第三步:安装遥控启动蓝色线,如图所示,将蓝色线与相应颜色的线连接好。
Step 3: Install the remote start blue lines. As the picture, connect the blue line with the line which has the same color.

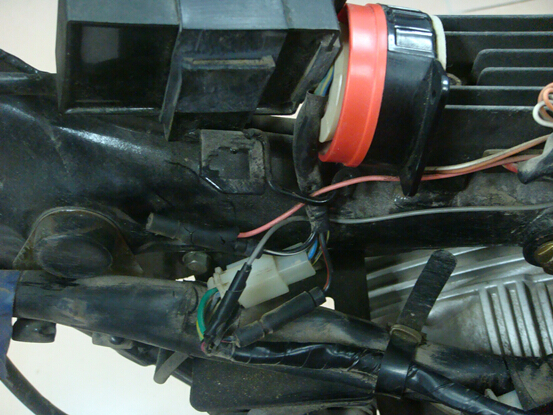

第四步:安装熄火线(粉红、灰色)如图所示:找到点火器,将点火器上的熄火线剪断,然后再将摩托车防盗器上的灰色线连接到靠近点火器一端,粉红线接到另一端。
Step 4: Install the lines( pink and gray) that has the function of turn off. As the picture, find the motorcycle ignition, cut off the ignition line, then take the gray line of motorcycle alarm connected with the line which close to one side of the ignition and the pink to another side of the ignition.
第五步:安装电门锁橙色线,如图所示,找到打开电门开关后带电的线,将它与橙色线连接好。
Step 5: Install the electronic door lock orange lines. As the picture, open the electronic door switch and find the power line, connect it with the orange line.
摩托车防盗器整机安装完毕!
The whole installation is over.
